Why do I need this machine?

Click on the image to enlarge

Why do I need this machine?

I have low productivity due to the slowness of manual cargo handling processes.
I need to optimize the flows of the production lines.
I waste time with stack leveling operations.
My operational costs for cargo handling are very high.
I am having difficulty finding workforce.
I have cases of product damage due to incorrect cargo handling.
My process poses a health risk to employees due to a lack of ergonomics in lifting heavy loads.

If you have any of these problems, check out this machine!

Automatic Lifting Platform

Prices starting atUSD 3.990,00*

* Check shipping conditions

Automatic Lifting Platform

Better ergonomics

Quick setup

Higher productivity

Product manufactured in accordance with safety standards

100% Brazilian manufacturing

Why choose the automatic lifting platform?

Increased productivity with fast and safe material handling;
Fluid, continuous, and efficient production flow;
Reduced time and effort in positioning operations;
Precise control actuation in manual mode (pedal) and/or fast and automatic cycles (sensor);
Smooth and controlled descent and elevation movement;
High load capacity, supporting up to 1500kg;
Elevation up to 1000mm;
Integral protection with a protection bellows system that ensures the operator’s safety according to safety standards;
Versatile application for integration with different machines and manufacturing sectors;
Customized production, available in lengths of 2000mm or 2500mm.

Better ergonomics

Quick setup

Higher productivity

Product manufactured in accordance with safety standards

100% Brazilian manufacturing

The Automatic Fixed Lifting Platform was developed to make the movement and precise positioning of parts easier, ensuring operational efficiency, ergonomics, and safety in the industrial environment.

Furniture

Technological highlights

The automatic lifting platform receives the parts on its platform and, through a hydraulic system, raises or lowers the parts vertically, positioning them at the ideal working height for the operator, ensuring ergonomic safety and efficiency during the process.

The lifting and lowering movement occurs automatically or manually. In automatic mode, the equipment's sensor detects the volume of parts on the platform and adjusts it to the best height for both the operator and the process. In manual mode, the operator controls the lifting according to their preference using pedals; one pedal raises the load and the other lowers it.

Besides, the automatic lifting platform features rollers on the surface that make the sliding of parts between stages of the production process easier, reducing the time and effort of movement in a simple and easy way.

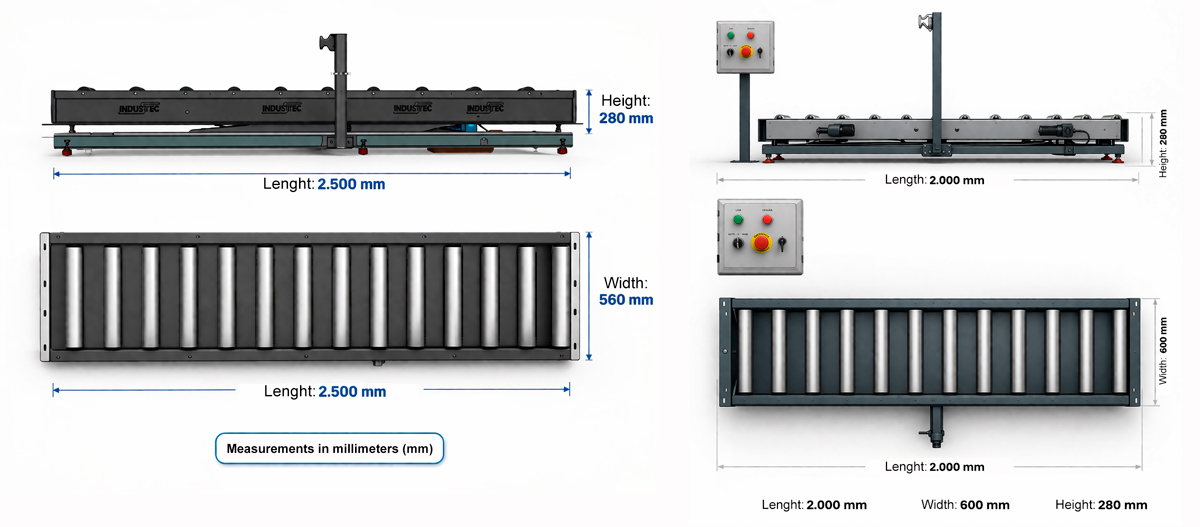

Equipment dimensions

Dimensions	Measurement unit
Total length (A)	mm	2000mm or 2500mm
Total width (B)	mm	560mm
Total height (C)	mm	from 280 to 1000mm
Net weight	kg	250kg 2000mm 300kg 2500mm

Packaging and delivery

Complete fixed lifting platform for export


Shipping guidance	Packages cannot be toppled over
Packaging specifications	Packages wrapped in stretch film
Total cubic measure	(L) Lenght x (W) Width x (H) Height Package 1: L2000 x WL560 x H280mm = 0,3136m³ Package 2: L2500 x WL560 x H280mm = 0,392m³ Package 2: L2500 x WL700 x H1800mm = 3,15m³ (Stacking support) máximum 5 platforms
Total net weight	2000mm Platform = 250kg 2500mm Platform = 300kg
Total gross weight	Machine’s gross weight: 250kg/300kg Stacking support’s weight: 80kg
Total number of boxes	02 Boxes
